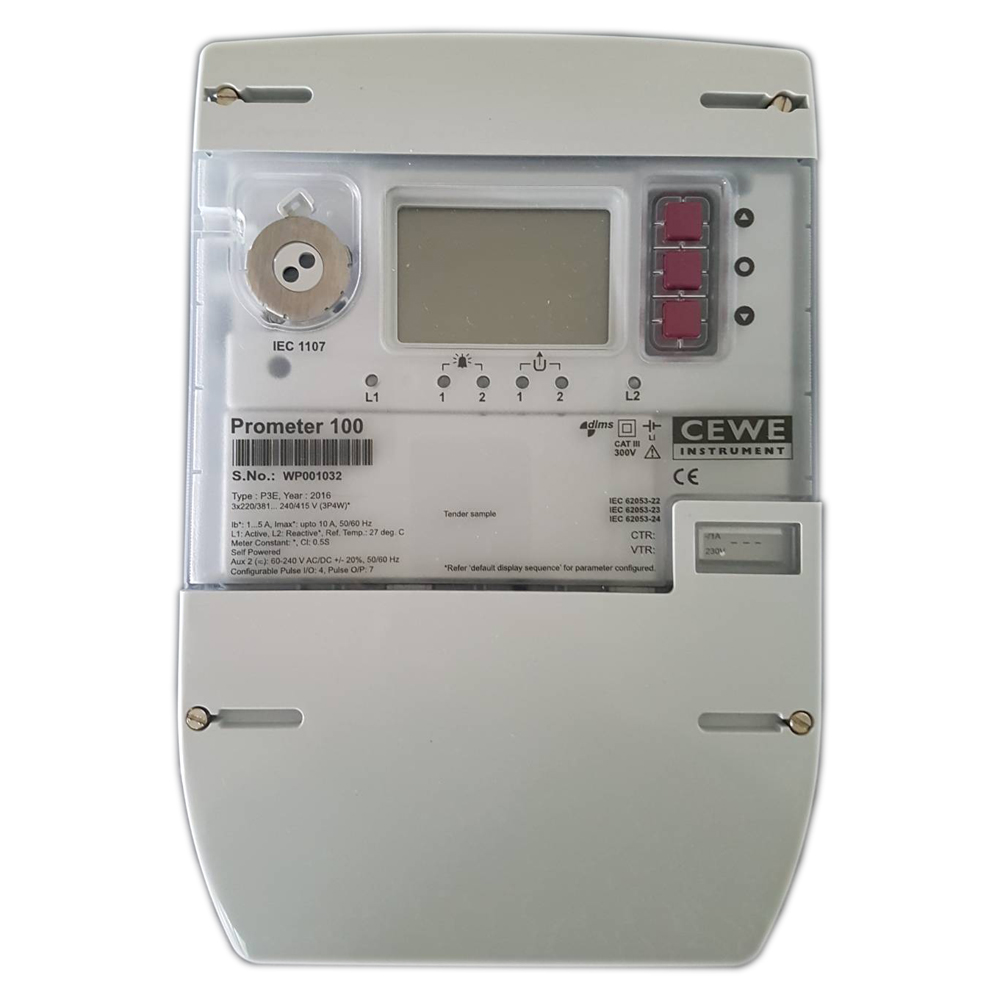

Prometer 100 (wall)

ขอใบเสนอราคา

Prometer 100, series of next generation energy meter designed for power transfer points requiring precise measurements and revenue transactions. Flexible and modular communications ensure integration with AMR / AMI / SCADA systems and upgrade to future sub-station automation systems. 4 quadrant energy measurement allows monitoring of generation, transmission and distribution loads


02-408-6423

Prometer 100 is a series of next generation energy meters designed for power transfer points requiring precise measurements and revenue transactions. Multiple communication options ensure easy integration with AMR/AMI/SCADA systems and upgrade to future sub-station automation systems. Four-quadrant energy measurement allows monitoring of generation, transmission and bulk power transfer points.

Application

  • Energy transfer measurement and reconciliation
  • Power plants, feeder monitoring, grid substations, wind turbines, renewable/PV, industrial and commercial premises
  • On-line monitoring of energy exchange at various interface points
  • Energy accounting, automation and system integration

Benefits

  • Minimal integration cost through multiple communication interfaces
  • Suitable for diverse applications through wide-range voltage, current and auxiliary supply inputs
  • Support of industry standard DLMS, MODBUS and IEC 61850 reading protocols
  • Meter reading and display viewing under power outage
  • Field replaceable hot pluggable communication modules
  • Multi-lingual support on display (English, Swedish, German, French, Spanish, Italian, Russian and Arabic)

Features

  • 0.2S/0.5S accuracy for active and reactive measurement
  • Wide-range dual auxiliary supply with options for AC/DC and self-power (VT powered)
  • Power quality features including THD, sag, swell, voltage unbalance and interruption recording
  • Dynamic error compensation for CT/VT
  • Transformer/Line loss adjustment (Copper and Iron losses)
  • Intuitive graphical display including vector diagram, wave forms and bar chart for consumption
  • Remote configuration of communication ports
  • Simultaneous DLMS and MODBUS over Ethernet port
  • Support of meter reading / display over field replaceable battery
  • In built IEC61850 along with RS232/RS485 and Ethernet ports in a single product & capability of simultaneous communication through all these ports
  • Dual loggers for energy and instantaneous parameters
  • Flexible time-of-day tariff, maximum demand support,
  • DST (Daylight saving time) support with automatic billing dates
  • Meter cover and terminal cover open detection
  • RS232 port compatible with meter-powered modem

Technical specifications
Electrical
Connection type :HV3/HV4/LV4
Measurement voltage range :
100V to 415V (L-L) ±30% 3P4W, 100V to 240 V (L-L) ±30% 3P3W,
Measurement current range :
1-10A (configurable)
Frequency : 50/60 Hz
Burden with auxiliary / Self (VT) powered :
Current circuit: < 0.1 VA/phase @ 1A, < 0.5 VA/phase @ 5A
Voltage circuit in case of Aux power:< 0.1 VA/phase
Voltage circuit in case of internal, self power: < 6 VA/phase
Accuracy Class 0.2S, class 0.5S
Maximum withstand Voltage :
1.5 times of nominal voltage continuously
2 times of nominal voltage for 0.5 second
Maximum withstand current :
1.5 times of Imax continuously
10 times Imax for 1 second
20 times Imax for 0.5 second

Dimension : 292.7 x 201.5 x 105.2 mm (± 0.5 mm) (H x W x D)
Weight : 2 kg (+/- 200 gm)
